The Database Architecture of Pylovo

The database follows a hierarchical structure:

1. Version Level (version) - Tracks which version grids belongs to

2. Postal Code Level (postcode_result) - Top-level geographical organization

3. Grid Cluster Level (grid_result) - Individual grids within postal codes

4. Building Level (buildings_result) - Individual buildings and consumers

5. Infrastructure Level - Lines, transformers, and equipment

Foreign Key Constraints

Referential integrity is ensured thorugh relationships between tables (foreign keys). When a row of a parent table is deleted, all related rows in child tables are also deleted. This helps maintain data consistency and integrity across the database.

For example, deleting a version row will delete all related rows in postcode_result, which cascades to grid_result, and other tables.

It is also guaranteed, for example, taht a transformer_position row cannot exist without a corresponding grid_result row, ensuring that all transformers are associated with a grid.

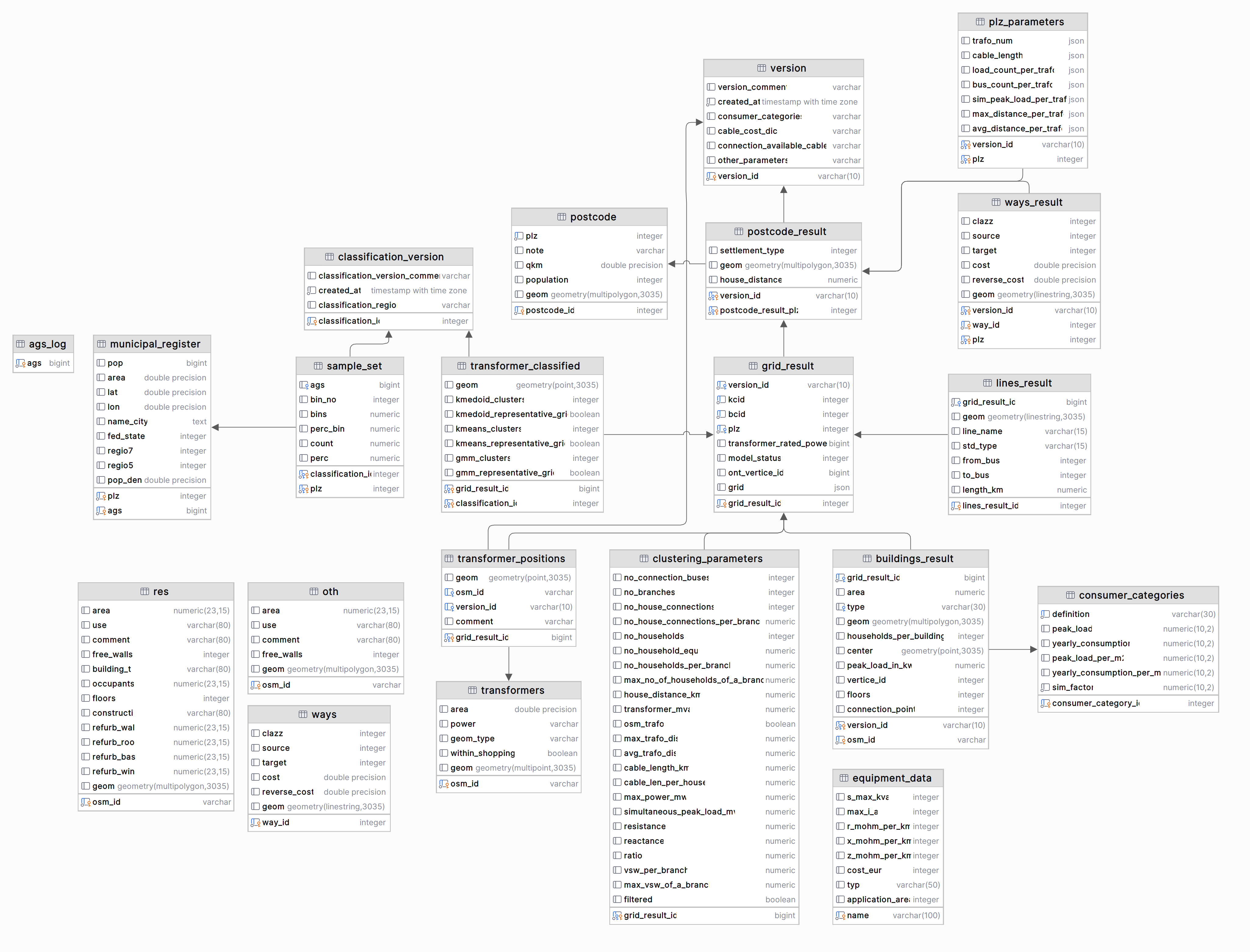

A diagram of the database structure with all of its tables and relationships is shown below:

Data Source Tables

Table Name	Description
postcode	Contains postal code information. Used for determining a boundaries of a postal code.
municipal_register	Municipal administrative data linked to postcodes. Used to determine which postcode belongs to which ags.
res	Residential building data table used for importing residential buildings.
oth	Non-residential buildings with simplified structure used for importing non-residential buildings.
ways	Street data is imported here.
equipment_data	Electrical equipment specifications and costs, directly imported from a CSV-file.
transformers	Transformer infrastructure from OpenStreetMap data.
consumer_categories	Defines different types of electrical consumers with their load characteristics, also from a CSV-file.
ags	Logs which ags region buildings have been imported into the database.

Version Control

Table Name	Description
version	Tracks versions in the database so that the same grid can be generated across different versions for example.
classification_version	Tracks different classification versions.

Result Tables

Table Name	Description
postcode_result	Each grid generation generates multiple grids in a postcode.
grid_result	A grid result row uniquely identifies a generated grid.
buildings_result	Buildings relevant to a grid are stored here.
ways_result	Ways that are part of a grid.
lines_result	Electrical lines of a grid.

Classification

Table Name	Description
sample_set	Stores sampled data for classification algorithms.
transformer_classified	Results of transformer clustering analysis using multiple algorithms.

Parameter Storage

Table Name	Description
clustering_parameters	Detailed clustering analysis parameters for each grid result.
plz_parameters	Parameters at postal code level stored as JSON.

Views

The schema includes several views that combine data across tables:

View Name	Description
transformer_positions_with_grid	Transformer positions with grid cluster context.
transformer_classified_with_grid	Classification results with grid cluster context.
buildings_result_with_grid	Building results with grid cluster context.
lines_result_with_grid	Line results with grid cluster context.

Spatial Data

All geometric data uses EPSG:3035 coordinate reference system.
